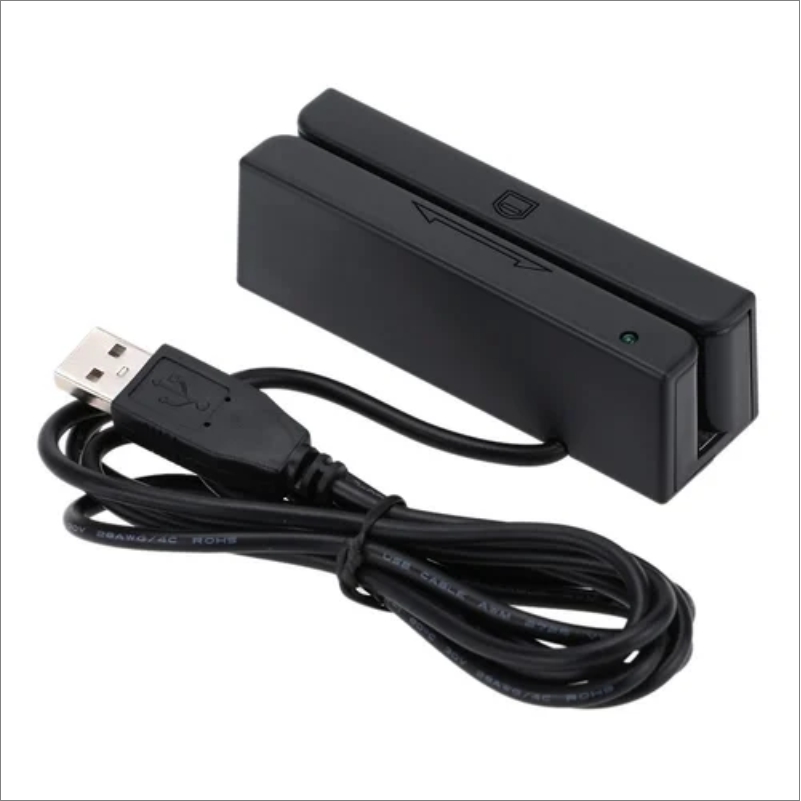

The E-POS MSR Card Reader is a compact magnetic stripe reader designed for fast and reliable card transactions in point-of-sale systems. It integrates seamlessly with POS terminals to ensure smooth, accurate, and secure payment processing in retail and hospitality environments.

Main Features

• Efficient magnetic stripe reading for credit and debit cards

• Seamless integration with electronic POS systems

• Compact, space-saving design

• Plug-and-play installation for quick setup

• Fast transaction processing

• Built-in security features to protect card data

• Suitable for retail and hospitality applications

• Reliable performance for daily commercial use

• User-friendly and easy to operate

Technical Specifications

• Card Standard: ISO7811 / ISO7812

• Track Position: ISO 1 (IATA), ISO 2 (ABA), ISO 3 (MINTS)

• Recording Density: 210 BPI / 75 BPI / 210 BPI

• Recording Capacity:

  • Track 1: 79 characters (7 bits)

  • Track 2: 40 characters (5 bits)

  • Track 3: 107 characters (5 bits)

• Power Supply: +5V DC ±5%

• Power Consumption: 30mA (max.)

• Interface: USB / Serial

• Card Thickness: 0.76 ± 0.08 mm

• Operation Speed: 10–150 cm/sec

• Head Life: 500,000 swipes

• Error Rate: < 0.5% (JSE test card)

• Operating Temperature: -20°C to +70°C

• Storage Temperature: -30°C to +70°C

• Operating Humidity: 20%–90% RH

• Storage Humidity: 0%–95% RH

• Dimensions: 100 × 34 × 30 mm

• Weight: 90 g
